UBIQUITI U-POE-AF

$ 15.17 IVA Incluido

IVA (21%)          ID:1149

SKU U-POE-AF Categoria Etiquetas , ,

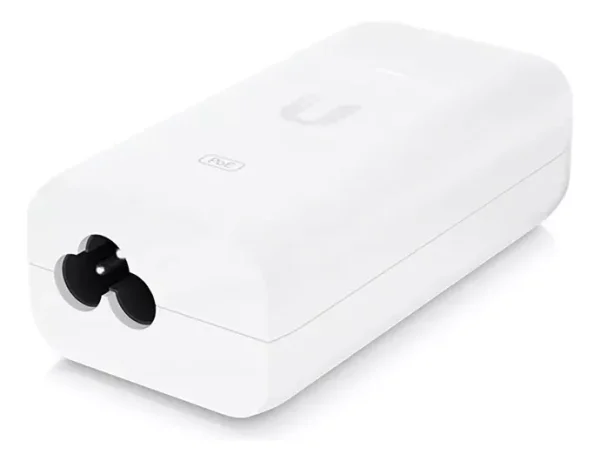

U-POE-af //poe injector 802.3AF (fuente para U6-lite)

Technical Specifications

Specifications
Model U-POE-af
Dimensions 86 x 46 x 33 mm (3.39 x 1.81 x 1.30″)
Weight 100 g (3.53 oz)
Output voltage 48V DC @ 0.32A
LAN activity indicator No
Gigabit LAN port Yes
Remote reset capability No
Reset Button No
Rated voltage 100—240V AC @ 50/60Hz
Input current 500mA Max.
Inrush current <100A Peak at 25°C
Efficiency 84.25+%
Output ripple 200mV p-p
Switching frequency 65 kHz
Line regulation ≤ 3%
Load regulation ≤ 5%
2-pair powering Pins 4, 5 (+) and 7, 8 (-)
4-pair powering No
AC connector IEC-320 C6
Data In / PoE RJ45 shielded socket
Surge protection Difference and common mode
Clamping protection 11V data, 60V power
Max. surge discharge 1500A (8/20 μs) power
Peak pulse current 36A (10/1000 μs) data
Shunt capacitance <5 pF data
Response time <1 ns
Ambient operating temperature 0 to 40° C (32 to 104° F)
Storage temperature -30 to 70°C (-22 to 158° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC, UL
