«Product Features:
• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground
Product Specifications:
• Output voltage: 24VDC @ 1A
• Input voltage: 90-260VAC @ 47-63Hz
• Input current: 0.6A @ 120VAC, 0.4A @230VAC
• Efficiency: 80+%
• Output ripple: 1% Max
• Switching frequency: 65kHz
• Line regulation: +/- 1%
• Load regulation: +/- 3%
• Operating temperature: 32 to 104 deg F (0C to 40 deg C)
• Storage temperature: -22 to 158 deg F(-30C to 70 deg C)
• Operating humidity: 35% to 95% non condensing
• Size: 3.47 x 2.24 x 1.3in (88 x 57 x 33mm)
• Model: GP-H240-100G
Product Includes:

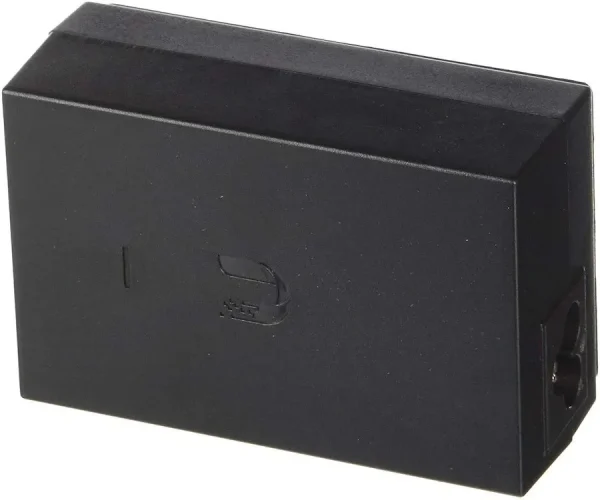

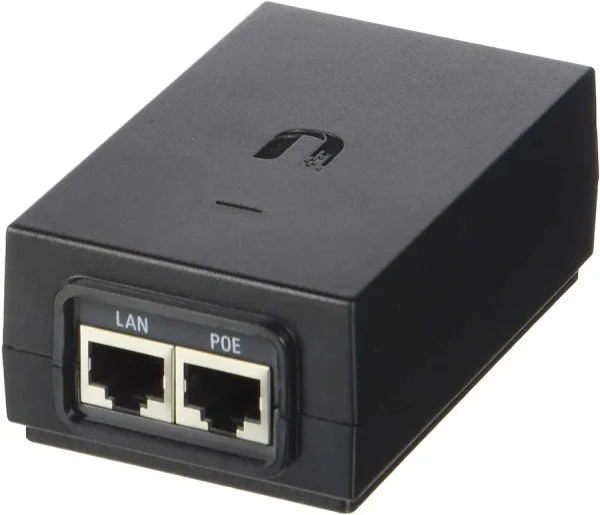

• POE-24-24W-G PoE Injector
• Power cord»
