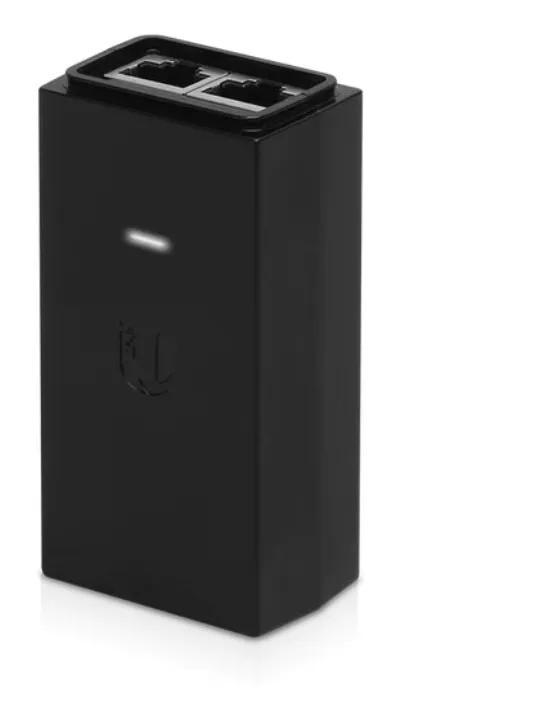

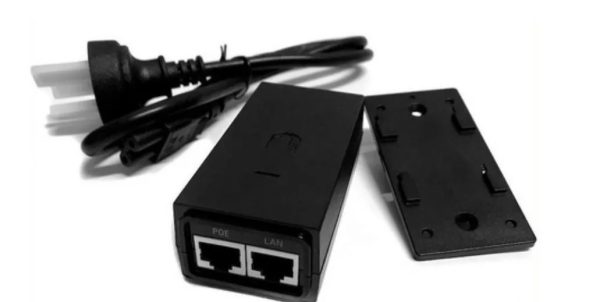

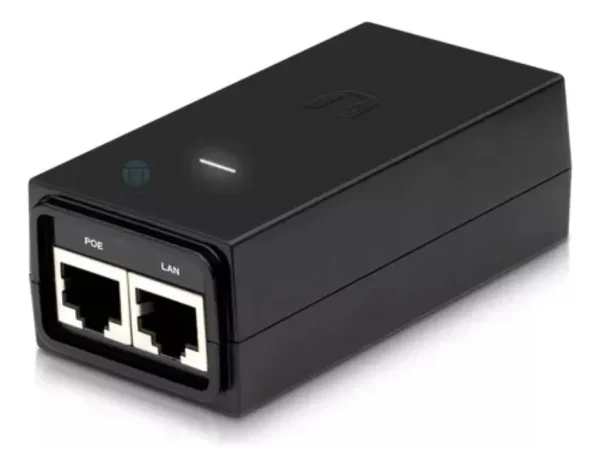

«Specifications POE-24-12W-G
Model POE24-12W-G
Dimensions 87 x 84 x 29.2 mm (3.43 x 3.31 x 1.15 in)
Weight 99.4 g (3.51 g)
Output Voltage 24VDC @0.5A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button Yes
Input Voltage 90-260VAC @ 47-63 Hz
Input Current 0.3A @ 120VAC, 0.2A @ 240VAC
Inrush Current <30A Peak @120VAC, <60A Peak @ 230VAC
Efficiency 75+%
Output Ripple 1% Max.
Switching Frequency 50 kHz
Line Regulation ± 1%
Load Regulation ± 3%
4-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature -30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20µS) Power
Peak Pulse Current 36A (10/1000µS) Data
Shunt Capacitance <5 pf data
Response Time <1 nS
Compliance IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
AC Cable with Earth Ground USA, EU, AR, BR, UL, CCC, Mexico"
