| Item | V1600GS-F | V1600GS-ZF | |
| Chassis | Rack | 1U | |
| GE/10GE
Uplink Port |
QTY | 3 | |
| RJ45(GE) | 2 | ||
| SFP(GE)/SFP+(10GE) | 1 | ||
| GPON Port Specification | QTY | 1 | |
| Fiber Type | 9/125μm SM | ||
| Connector | SC/UPC,
TX: 7.5±0.5dBm, Sen: -32dBm |
||
| GPON port speed | Upstream 1.244Gbps
Downstream 2.488Gbps |
||
| Wavelength | TX 1490nm, RX 1310nm | ||
| Max splitting ratio | 1:128 | ||
| Transmission Distance | 20KM | ||
| Management Ports | 1*USB-COM(Type-C) port | ||
| Backplane Bandwidth (Gbps) | 16 | 14 | |
| Port Forwarding Rate (Mpps) | 23.808 | 20.832 | |
| Management Mode | WEB/Telnet/CLI/SNMP | ||
| Power supply | AC Power Adapter | Working Voltage Range: 100~240V, Rated Voltage: 110V/220V | |
| DC Power Adapter | DC 12V/2A | ||
| Lightning
Protection Level |
Power supply | 4KV | |
| Device Interface | 1KV | ||

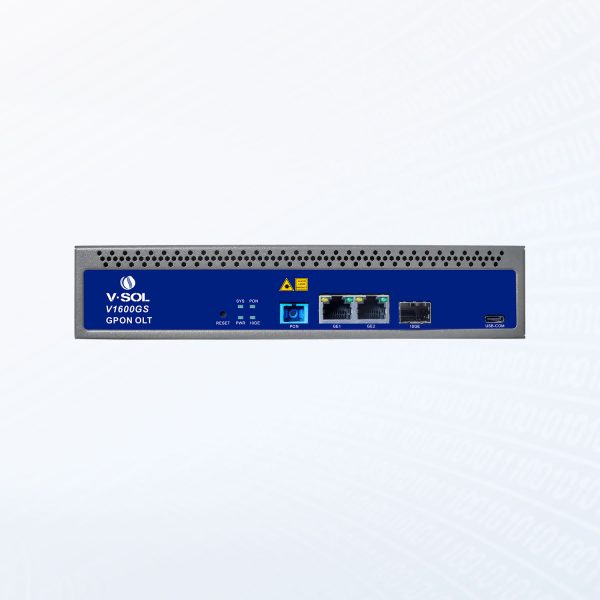

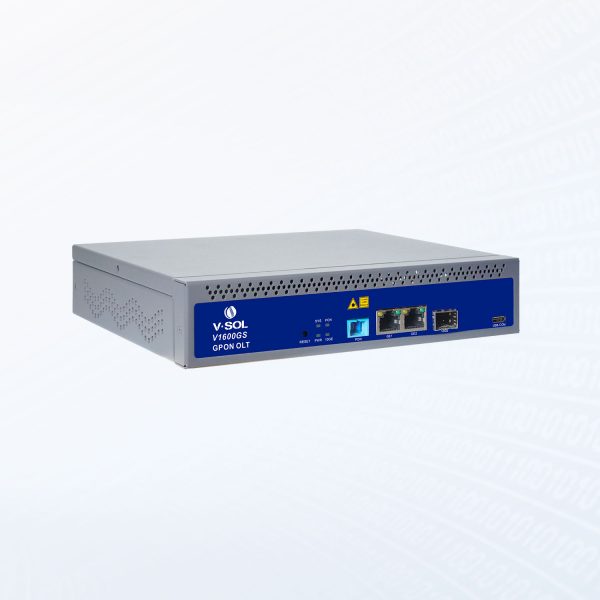

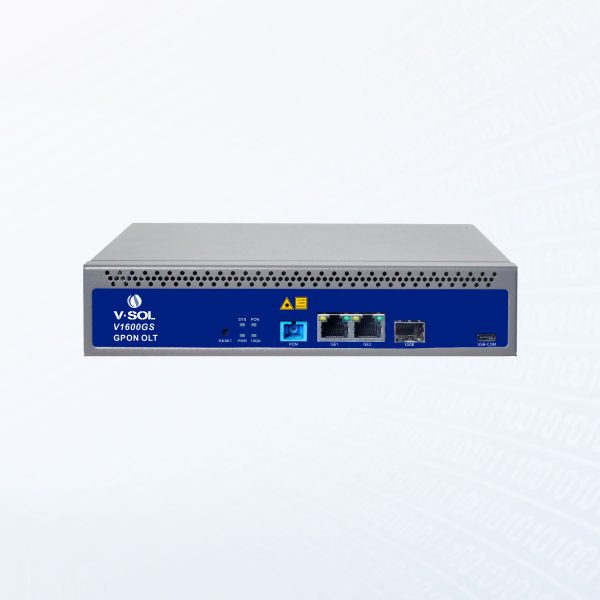

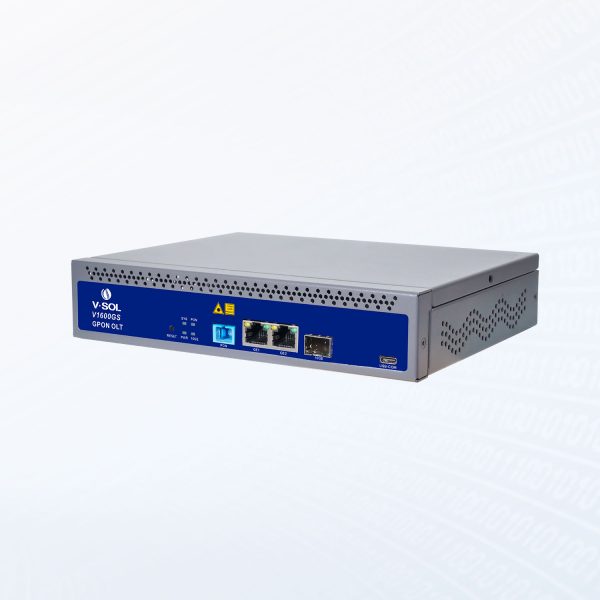

V-SOL OLT V1600GS
$ 428,00
IVA (10,5%) ID:4218
Single PON GPON OLT 1*GPON, 2*GE(RJ45)+1*10(SFP/SFP+)
