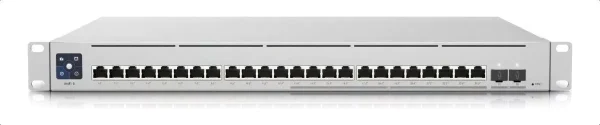

UBIQUITI USW-Enterprise-24-PoE

$ 1,663.00 IVA Incluido

IVA (10,5%)          ID: 1165

SKU USW-Enterprise-24-PoE Categoria Etiquetas , ,

USW-Enterprise-24-PoE

Technical Specifications

Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7″)
Weight Without mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (12) GbE RJ45 ports
(12) 2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface (24) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 62 Gbps
Switching capacity 124 Gbps
Forwarding rate 92.25 Mpps
Power method (1) Universal input, 100—240V AC, 8.5A Max., 50/60 Hz
(1) USP-RPS DC input: 52V DC, 7.7A; 11.5V DC, 8.7A
Power supply AC/DC, internal, 550W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 400W
Max. PoE+ wattage per port by PSE 34.2W
Voltage range PoE mode PoE: 44— 57V
PoE+: 50—57V
Services SMB Layer 3 PoE GbE switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3″ color touchscreen
Button Factory reset
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 95% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs
LEDs
System Status
Ethernet Link/activity
SFP+ Link/activity
Application Requirements
UniFi Network Version 5.14.12 and later
