UBIQUITI USW-24-POE

$ 765.00 IVA Incluido

IVA (10,5%)          ID: 1169

SKU USW-24-POE Categoria Etiquetas , ,

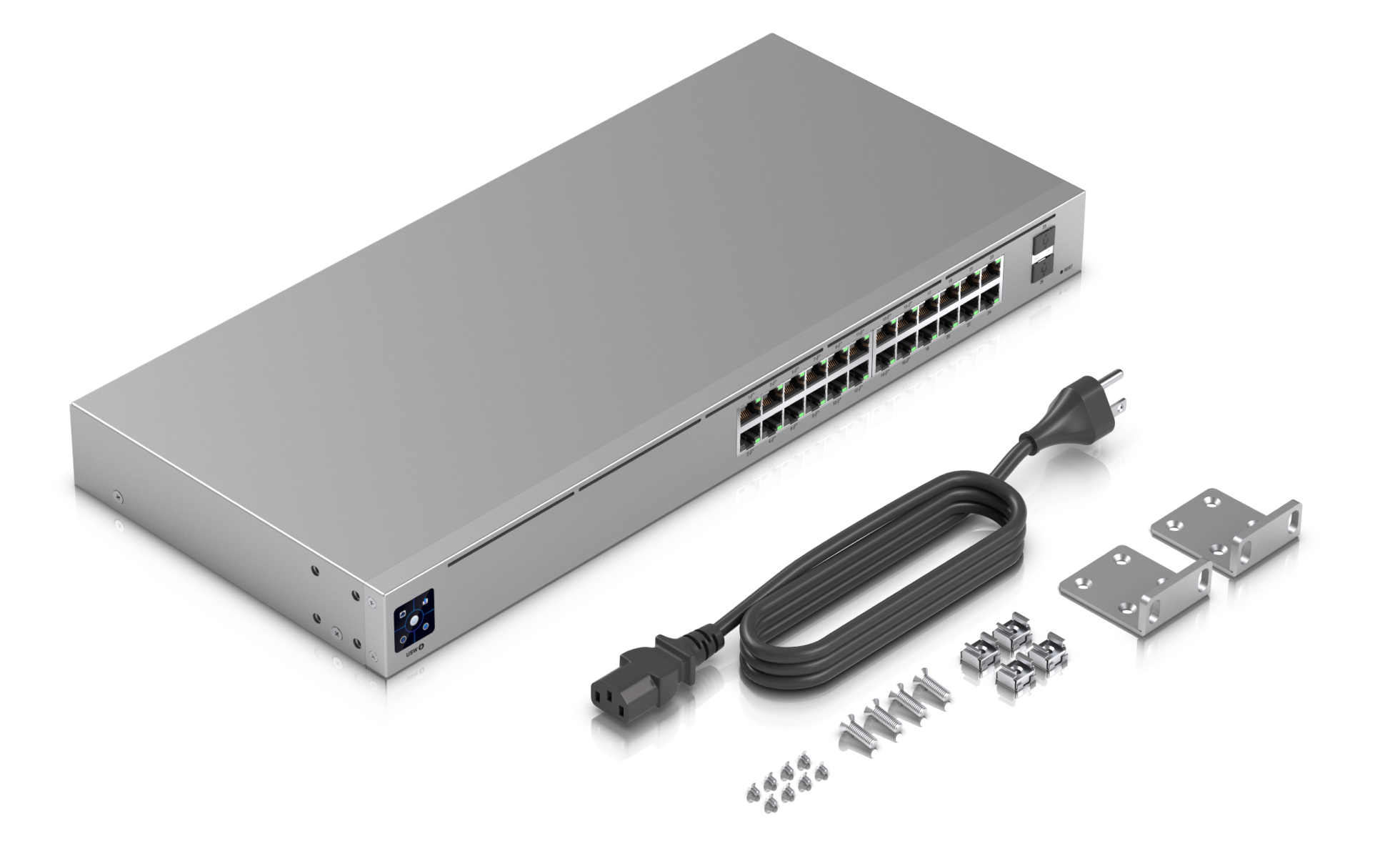

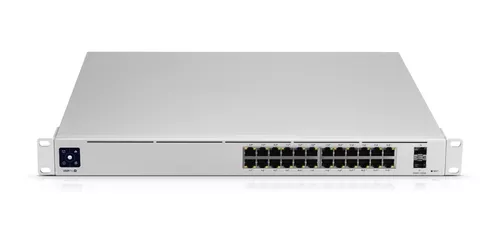

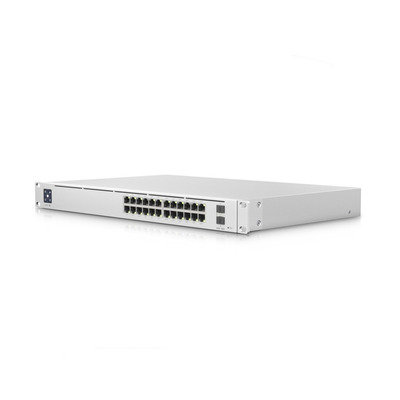

USW-24-POE UNIFI SWITCH 24 PORT GIGA 16POE + 95WATTS

Technical Specifications

Mechanical
Dimensions 442 x 200 x 44 mm (17.4 x 7.9 x 1.7″)
Weight Without mounting brackets: 3 kg (6.6 lb)
With mounting brackets: 3.1 kg (6.8 lb)
Enclosure material SGCC steel
Hardware
Management interface Ethernet In-Band
Networking interface (24) GbE RJ45 ports
(2) 1G SFP ports
PoE interface (16) PoE/PoE+ (Pins 1, 2+; 3, 6-)
Total non-blocking throughput 26 Gbps
Switching capacity 52 Gbps
Forwarding rate 38.69 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
Power supply AC/DC, internal, 120W
Supported voltage range 100—240V AC
Max. power consumption 25W (Excluding PoE output)
Total available PoE 95W
Max. PoE wattage per port by PSE PoE+: 32W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3″ touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Ambient operating temperature -5 to 40° C (23 to 104° F)
Ambient operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
Switching Features
Layer 2 features IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs
Layer 3 features
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP Link/activity
Application Requirements
UniFi Network Version 7.2.94 and later
