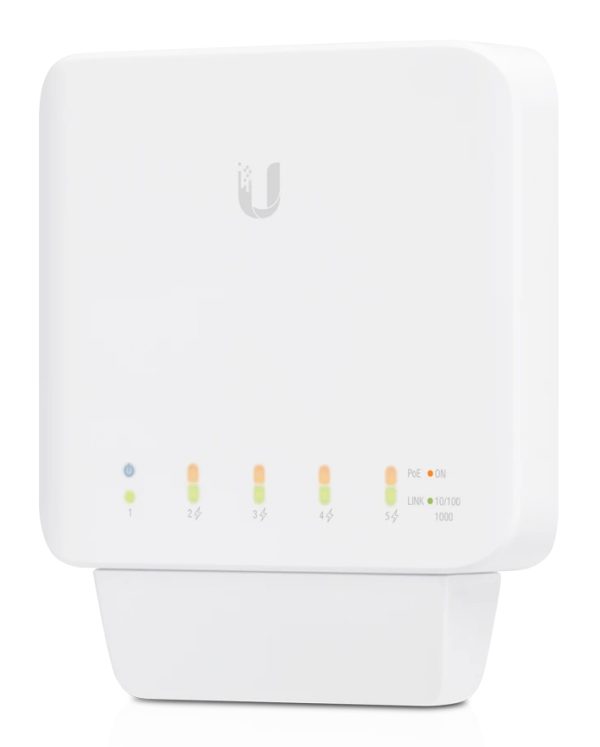

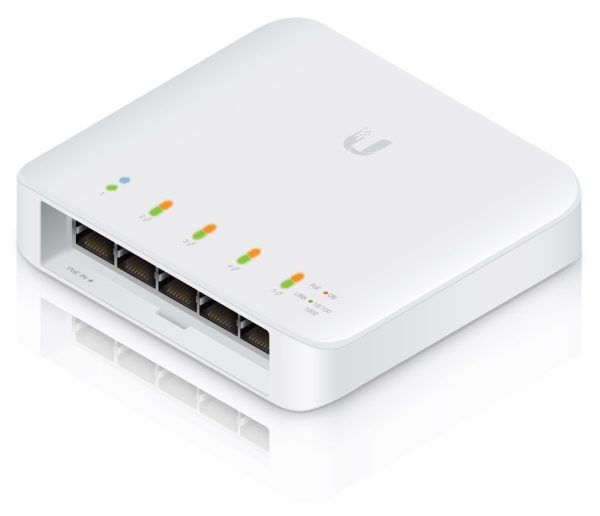

Switch PoE de capa 2 flexible de cinco puertos que se puede alimentar con PoE++.
(1) entrada GbE, PoE++ RJ45
(4) puertos GbE, PoE+ RJ45
Suministro PoE total de hasta 46 W*
Diseño resistente a la intemperie con múltiples opciones de montaje
NO INCLUYE FUENTE
Dimensions 122.5 x 107.1 x 28.0 mm
(4.82 x 4.22 x 1.10″)
Weight 230 g (8.11 oz)
Networking Interfaces (5) 10/100/1000 Mbps RJ45 Ports
Management Interface Ethernet In-Band
PoE Out (Ports 2-5) 802.3at (Pins 1, 2+; 3, 6-)
Max Power Consumption
(Excluding PoE Output)
5W
Max PoE Wattage Per Port 25W
Total PoE Power Budget
Powered by 802.3af
Powered by 802.3at
Powered by 802.3bt
Powered by PoE Adapter
(Enabled in Controller)
8W
20W
46W
46W
Voltage Range
802.3af
802.3at/bt
44 – 57V
50 – 57V
LEDs
System
RJ45 Data Ports
Status
PoE; Link/Speed/Activity
ESD/EMP Protection ± 16kV Air, ± 16kV Contact
Operating Temperature
46W PoE Output
25W PoE Output
-40 to 55° C (-40 to 131° F)
-40 to 65° C (-40 to 149° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
