WiFi de 6 bandas de 5 GHz, WiFi de 4 bandas de 2,4 GHz
Tasa de rendimiento agregado de 1,5 Gbps
Patrón de antena enfocado para un montaje óptimo en techo o pared
(1) puerto GbE RJ45 (entrada PoE)
Se adapta a las cubiertas UAP nanoHD y al soporte de montaje empotrado
Mechanical
Hardware
Software
Dimensions Ø160 x 32.65 mm (Ø6.3 x 1.3″)
Weight Without mount: 300 g (10.6 oz)
With mount: 315 g (11.1 oz)
Enclosure materials Polycarbonate, aluminum
Mounting materials Polycarbonate, SGCC steel
Managementinterfaces Ethernet
Bluetooth

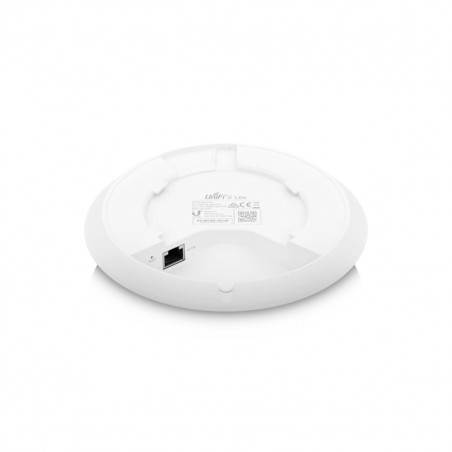

Networking interface (1) GbE RJ45 port
Button Factory reset

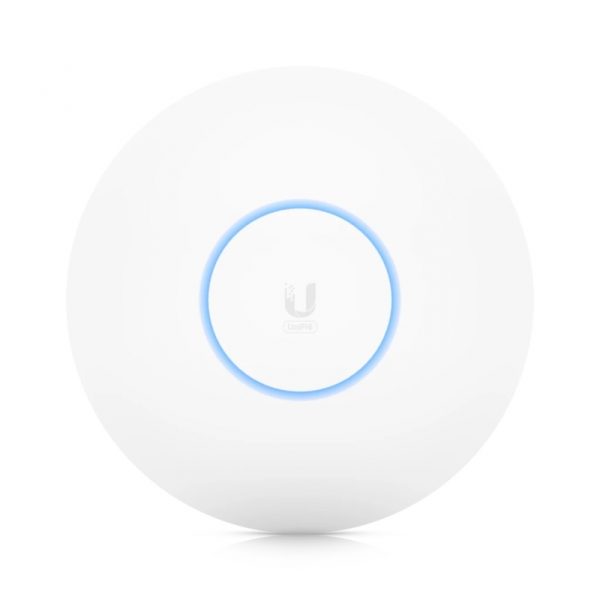

LED* White/blue
*Duetochipsupply shortages,theU6Lite’s LEDhas beenlimitedtoonlywhiteandbluecolormodes.
Power method PoE, passive PoE (48V)
Power supply PoE
48V, 0.32A PoE adapter (optional)
Supported voltage range 44 to 57VDC
Max. power consumption 12W
Max. TX power 2.4 GHz 23 dBm
5 GHz 23 dBm
MIMO 2.4 GHz 2 x 2
5 GHz 2 x 2
Throughput rate 2.4 GHz 300 Mbps
5 GHz 1201 Mbps
Antenna gain 2.4 GHz 2.8 dBi
5 GHz 3 dBi
Operating temperature -30 to 60° C (-22 to 140° F)
Operating humidity 5 – 95% noncondensing
Certications CE, FCC, IC
WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6
Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guesttrafc isolation Supported
Concurrent clients 300+
