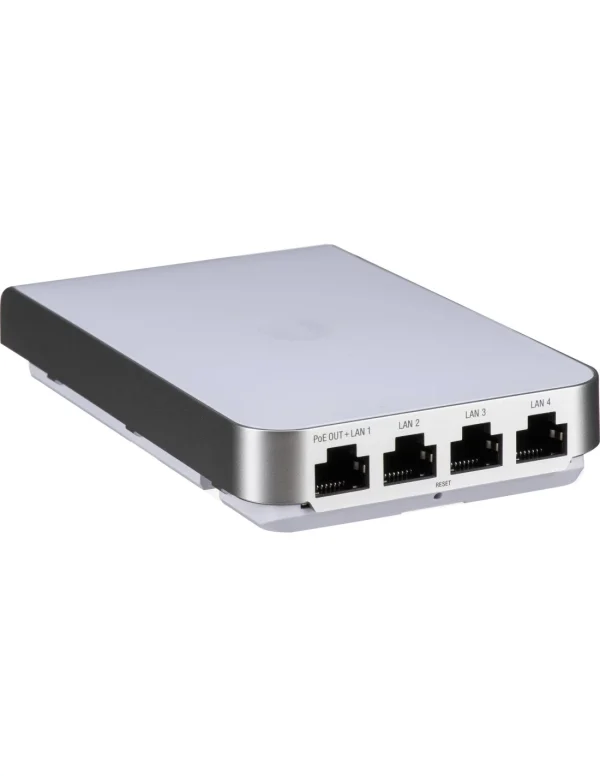

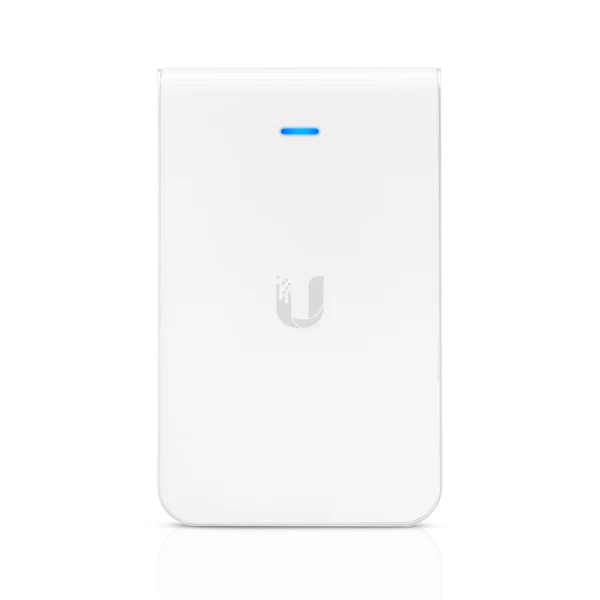

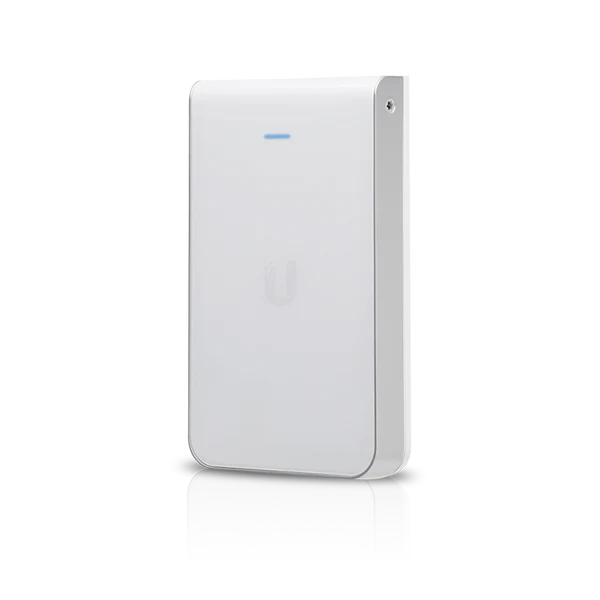

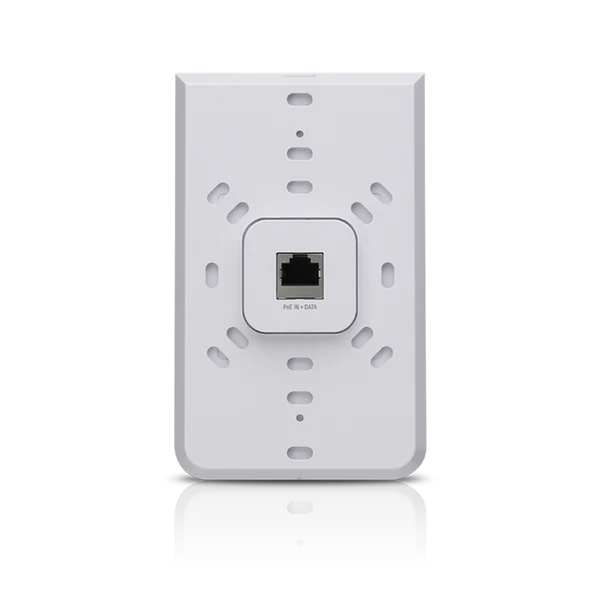

UBIQUITI UAP-IW-HD UniFi Access Point InWall Hi- Density

$ 425.00 IVA Incluido

IVA (10,5%)          ID: 1174

SKU UAP-IW-HD Categoria Etiquetas , , ,

UAP-IW-HD UniFi Access Point InWall Hi- Density



Technical Specifications

Mechanical
Dimensions 139.7 x 86.7 x 25.8 mm (5.5 x 3.4 x 1″)
Weight 210 g (7.4 oz)
Hardware
Networking interface (5) GbE RJ45 ports
Management interface Ethernet
PoE interface (1) PoE/PoE+ in
(1) PoE out
Power method PoE
PoE+*
*Required for PoE passthrough.
Power supply UniFi PoE switch
PoE out 48V pass-through (Pins 1, 2+; 3, 6-)
Supported voltage range 44—57V DC
Max. power consumption 11W (Excluding PoE output)
Max. PoE wattage per port by PSE 23W*
*Requires PoE switch.
Max. TX power
2.4 GHz
5 GHz
23 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2 x 2
4 x 4
Throughput rate
2.4 GHz
5 GHz
300 Mbps
1733 Mbps
Antenna gain
2.4 GHz
5 GHz
1.8 dBi
6 dBi
Button Factory reset
Mounting 1-Gang electrical wall box (Optional)
Ambient operating temperature -10 to 60° C (14 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC, cULus
Software
WiFi standards 802.11 a/b/g/n/r/k/v/ac/ac-wave2
Wireless security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID Up to 8 per radio
VLAN 802.1Q
Advanced QoS Per-user rate limiting
Guest traffic isolation Supported
Power save Supported
Beam-forming Supported
WMM Voice, video, best effort, and background
Concurrent clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 -MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 – MCS9 NSS1/2, VHT 160)
