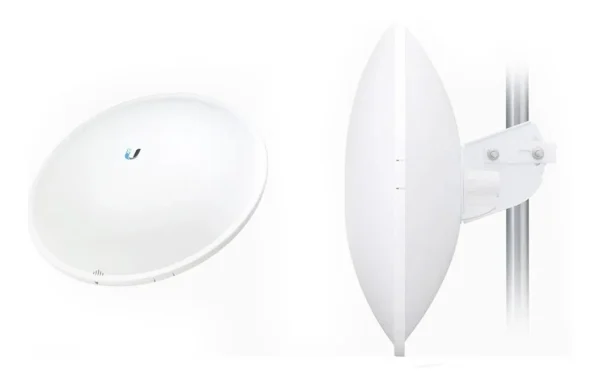

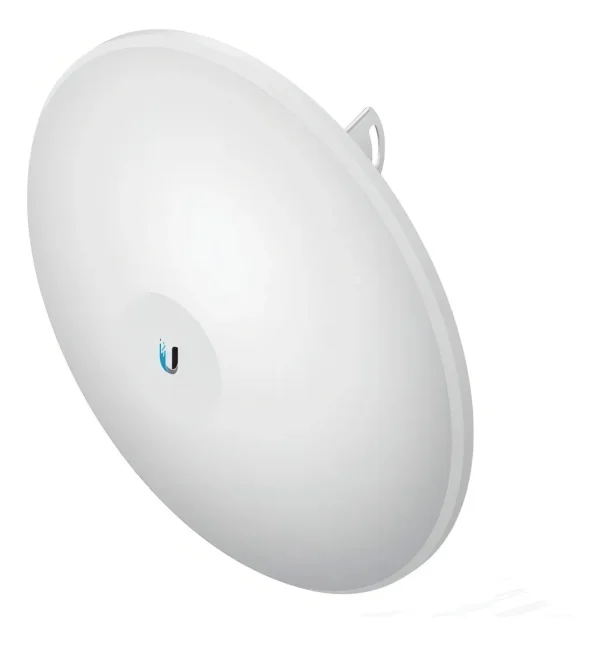

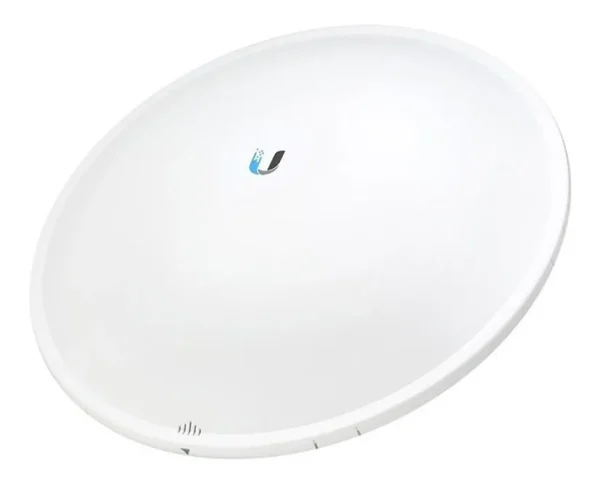

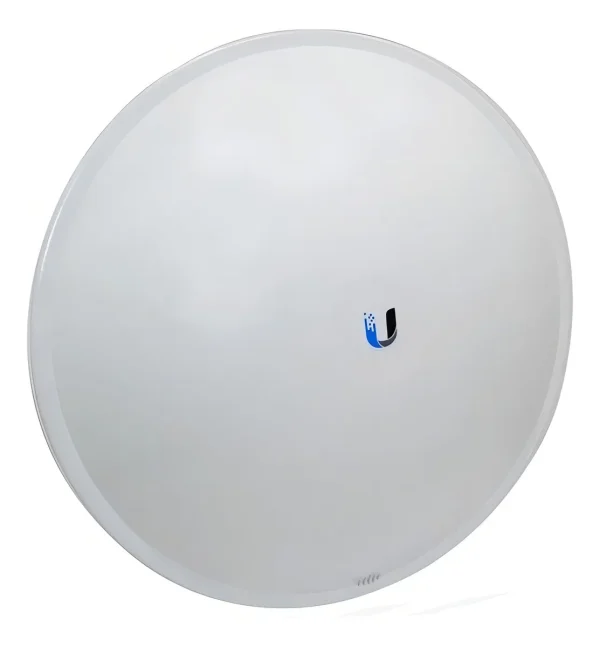

UBIQUITI POWERBEAM M500AC PBE-5AC-500

$ 271.87 IVA Incluido

IVA (10,5%)          ID: 1007

Se vende de a par.
El ancho de haz uniforme maximiza la inmunidad al ruido
Diseño mecánico innovador
Procesador de alta velocidad para un rendimiento superior

Categoria

El PowerBeam ac dirige la energía de RF
en un ancho de haz más estrecho. Con el foco
en una dirección, el PowerBeam ac
bloquea o filtra espacialmente el ruido,
entonces se mejora la inmunidad al ruido. Esta
característica es especialmente importante en un
área llena de otras señales de RF de
la misma o similar frecuencia

PBE-5AC-500 System and Regulatory/Compliance
Processor Specs
Atheros MIPS 74Kc, 720 MHz
Memory
128 MB DDR2, 8 MB Flash
Networking Interface
(1) 10/100/1000 Ethernet Port
Wireless Approvals
FCC, IC, CE
RoHS Compliance
Ye s
PBE-5AC-500 Physical/Electrical/Environmental
Dimensions
Radome Excluded
Radome Included
520 x 520 x 308 mm (20.47 x 20.47 x 12.13″)
525 x 525 x 315 mm (20.67 x 20.67 x 12.40″)
Weight
Radome Excluded
Radome Included
2.35 kg (5.18 lb)
3.15 kg (6.95 lb)
Power Supply
24V, 0.5A Gigabit PoE
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20-26VDC
Max. Power Consumption
8.5W
Gain
27 dBi
Operating Frequency
Worldwide
USA
5150 – 5875 MHz
5725 – 5850 MHz
Wind Loading
419.6 N @ 200 km/h (94.33 lbf @ 125 mph)
Wind Survivability
200 km/h (125 mph)
LEDs
(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole-Mount Kit Included
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Non-Condensing
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
