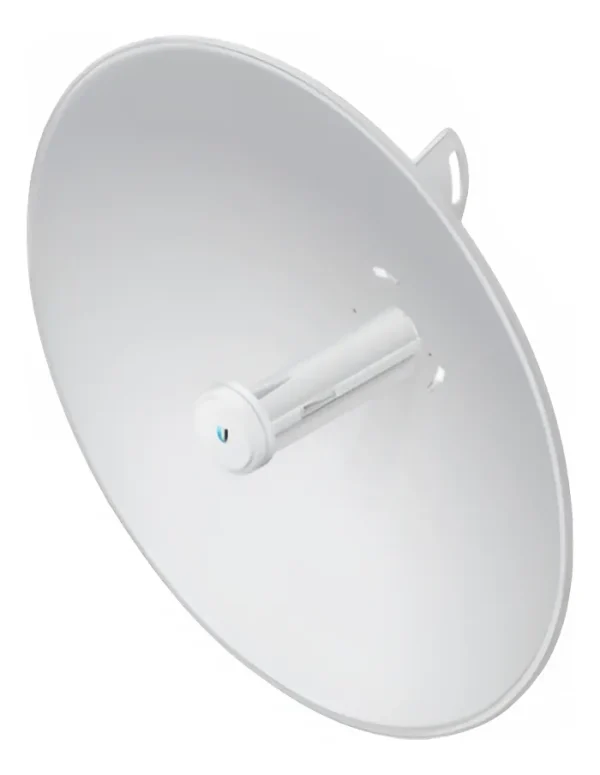

El PowerBeam ac dirige la energía de RF
en un ancho de haz más estrecho. Con el foco
en una dirección, el PowerBeam ac
bloquea o filtra espacialmente el ruido,
entonces se mejora la inmunidad al ruido. Esta
característica es especialmente importante en un
área llena de otras señales de RF de
la misma o similar frecuencia.
Specifications
PBE-5AC-620 System and Regulatory/Compliance
Processor Specs
Atheros MIPS 74Kc, 720 MHz
Memory
128 MB DDR2, 16 MB Flash
Networking Interface
(1) 10/100/1000 Ethernet Port
Wireless Approvals
FCC, IC, CE
RoHS Compliance
Ye s
PBE-5AC-620 Physical/Electrical/Environmental
Dimensions
620 x 620 x 386 mm (24.41 x 24.41 x 15.2″)
Weight
6.4 kg (14.11 lb)
Power Supply
24V, 0.5A Gigabit PoE
Power Method
Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range
20-26VDC
Max. Power Consumption
8.5W
Gain
29 dBi
Operating Frequency
Worldwide
USA
5150 – 5875 MHz
5725 – 5850 MHz
Wind Loading
872 N @200 km/h (196 lbf @125 mph)
Wind Survivability
200 km/h (125 mph)
LEDs
(1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs
Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes
PtP Mode
PtMP Mode
10/20/30/40/50/60/80 MHz
10/20/30/40 MHz
Polarization
Dual Linear
Enclosure
Outdoor UV Stabilized Plastic
Mounting
Pole-Mount Kit Included
ESD/EMP Protection
Air: ± 24 kV, Contact: ± 24 kV
Operating Temperature
-40 to 70° C (-40 to 158° F)
Operating Humidity
5 to 95% Non-Condensing
Salt Fog Test
IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test
IEC 68-2-6
Temperature Shock Test
IEC 68-2-14
UV Test
IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test
ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
