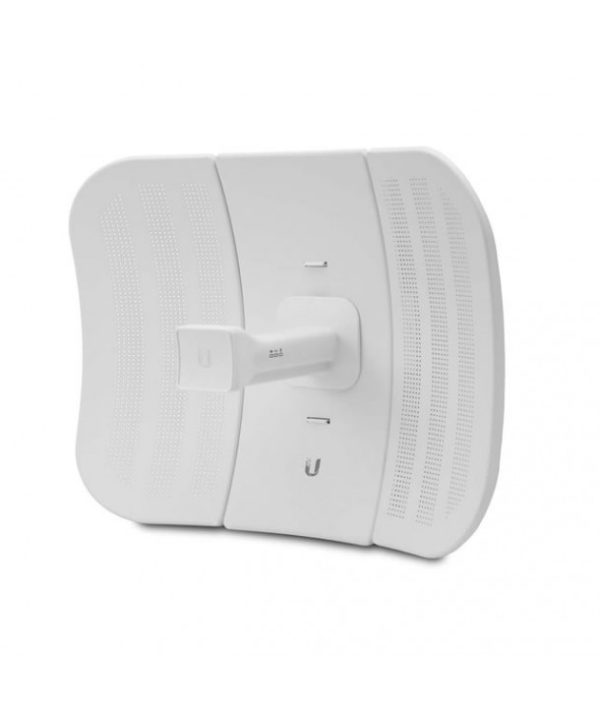

Diseñado para aplicaciones de largo alcance, el LBE-5AC-LR
presenta un tamaño de reflector más grande y ajuste de elevación
(el acimut se ajusta mediante la rotación alrededor del polo).
Specifications
LBE-5AC-LR
Dimensions 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17″)
Weight
Without Mount
With Mount
1.360 kg (2.998 lb)
1.735 kg (3.825 lb)
Power Supply 24V, 0.3A Gigabit PoE Adapter (Included)
Max. Power Consumption 7W
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Supported Voltage Range 24V ± 10%
Gain 26 dBi
Networking Interface (1) 10/100/1000 Ethernet Port
Processor Specs MIPS 74Kc
Memory 64 MB DDR2
LEDs Power, Ethernet
Channel Sizes PtP Mode PtMP Mode
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz
Enclosure Characteristics Reflector (Aluminum) / Plastic: PC
Mounting Pole-Mounting Kit (Included)
Wind Loading 550 N @ 200 km/h (123.6 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
ESD/EMP Protection ± 24 kV Contact / Air
Operating Temperature -40 to 70° C (-40 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Operating Frequency (MHz)
Worldwide 5150 – 5875
US/CA U-NII-1:
5150 – 5250
U-NII-2A:
5250 – 5350 MHz
U-NII-2C:
5470 – 5725 MHz
U-NII-3:
5725 – 5850
