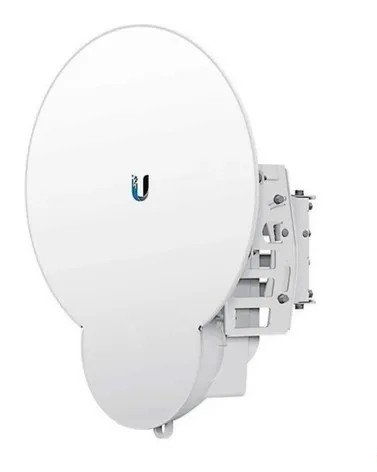

Un verdadero
revolucionario punto a punto inalámbrico
plataforma de Ubiquiti Networks.
Alojado en un compacto, altamente eficiente
factor de forma, airFiber ofrece una increÃble
Gigabit inalámbrico + rendimiento, bajo
latencia y largo alcance. AirFiber
marca el comienzo de una nueva era de precios disruptivos
tecnologÃa inalámbrica ideal para operador
backhaul, de edificio a edificio
uso empresarial o seguridad pública
aplicaciones.
Operating Frequency 24.05 – 24.25 GHz
Dimensions 649 x 426 x 303 mm
Weight 10.5 kg (Mount Included)
Max. Power Consumption < 50W
Power Supply 50V, 1.2A PoE GigE Adapter (Included)
Power Method Passive Power over Ethernet (42-58VDC)
Certifications CE, FCC, IC
Mounting Pole Mount Kit (Included)
Operating Temperature -40 to 55°C (-40 to 131° F)
LEDs (8) Status LEDs: Data Port Speed
Data Port Link/Activity
Configuration Port Speed
Configuration Port Link/Activity
GPS Synchronization
Modulation Mode
Master/Slave
RF Status
(1) Two-Digit LED Display Calibrated in dBm
Interface
Data Port (1) 10/100/1000 Ethernet Port
Configuration Port (1) 10/100 Ethernet Port
Auxiliary Port (1) RJ-12, Alignment Tone Port
System
Maximum Throughput 1.4+ Gbps
Maximum Range 13+ km
Packets per Second > 1 Million
Encryption 128-Bit AES
Forward Error Correction 164/205
Cyclic Prefix 1/16 Fixed
Uplink/Downlink Ratio 50% Fixed
