Antenna Connection TwistPort™ – Quick Locking Waveguide Port
Radio Connection 2x Slide-On RP-SMA
Materials
Insert – Aluminium Alloy
Shield – Aluminium Alloy and Zinc Alloy
Adaptor – UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight
0.5 Kg / 1.1 lbs – single unit
0.7 Kg / 1.5 lbs – single unit incl. package
15 Kg / 33 lbs – carton (20 units)
Single Unit Retail Box: 24.3 × 11.7 × 11.7 cm
20 Units Carton Box: 62 × 25 × 52 cm
PACKAGE CONTENTS

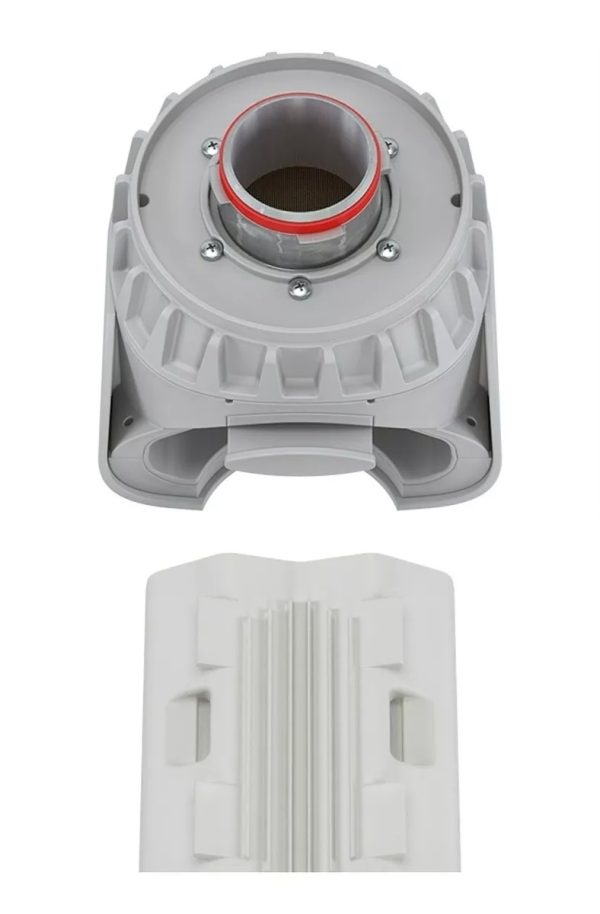

TwistPort™ Adaptor Body
TwistPort™ Adaptor Bottom Cover
Screw 2.9 x 6.5 mm (2 pcs)
COMPATIBLE WIRELESS PLATFORMS
RF elements® any TwistPort™ Antenna
Ubiquiti Networks™ Rocket™ M5
TECHNICAL DATA PRODUCT DIMENSIONS
Product ID: TP-ADAPTOR-RM5-S-V2
112 mm
Frequency Range 5180 – 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
