Antenna Connection TwistPort – Quick-locking Waveguide Port
Radio Connection 2x Slide-On RP-SMA
Materials Insert – Aluminium Alloy
Adaptor – UV stabilized and weather resistant ABS plastic
Flame Rating UL 94 HB
Temperature -40°C to +60°C (-40°F to +140°F)
Wind Survival 160 km/h
Weight
0.40 Kg /0.9 lbs – single unit
0.52 Kg /1.1 lbs – single unit incl. package
11 Kg /24 lbs – carton (20 units)
Single Unit Retail Box: 13.5 × 11.5 × 13 cm
20 Units Carton Box: 60.5 × 29 × 28.5 cm
COMPATIBLE WIRELESS PLATFORMS
RF elements® any TwistPort™ Antenna
Mimosa Networks C5c
Frequency Range 5180 – 6400 MHz
Polarization Dual Linear H + V
VSWR Max 1.8
Impedance 50 Ohm
PERFORMANCE

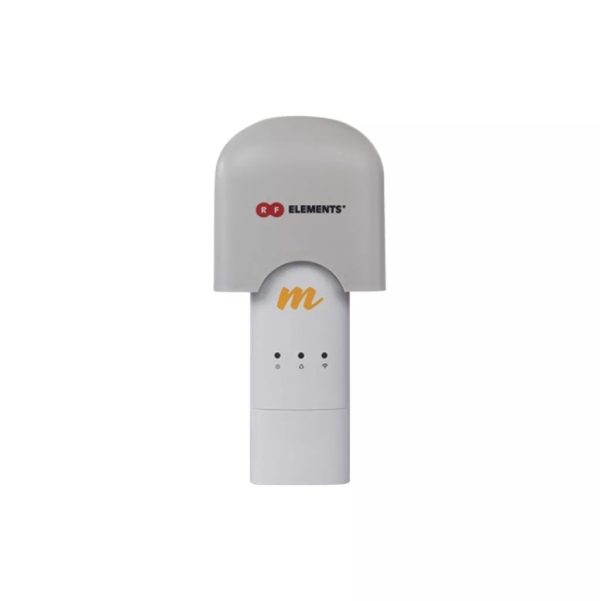

The TwistPort™ Adaptor for Mimosa C5c makes the radio
compatible with all TwistPort™ Antennas. TwistPort™
Adaptors are equipped with our original quick-locking
waveguide port. Connecting and disconnecting the C5c from
the TwistPort™ Adaptor is very simple and requires no tools.
