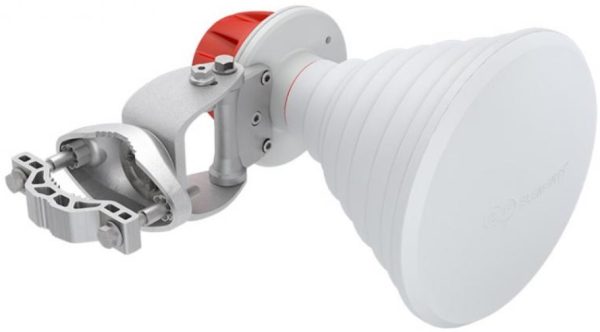

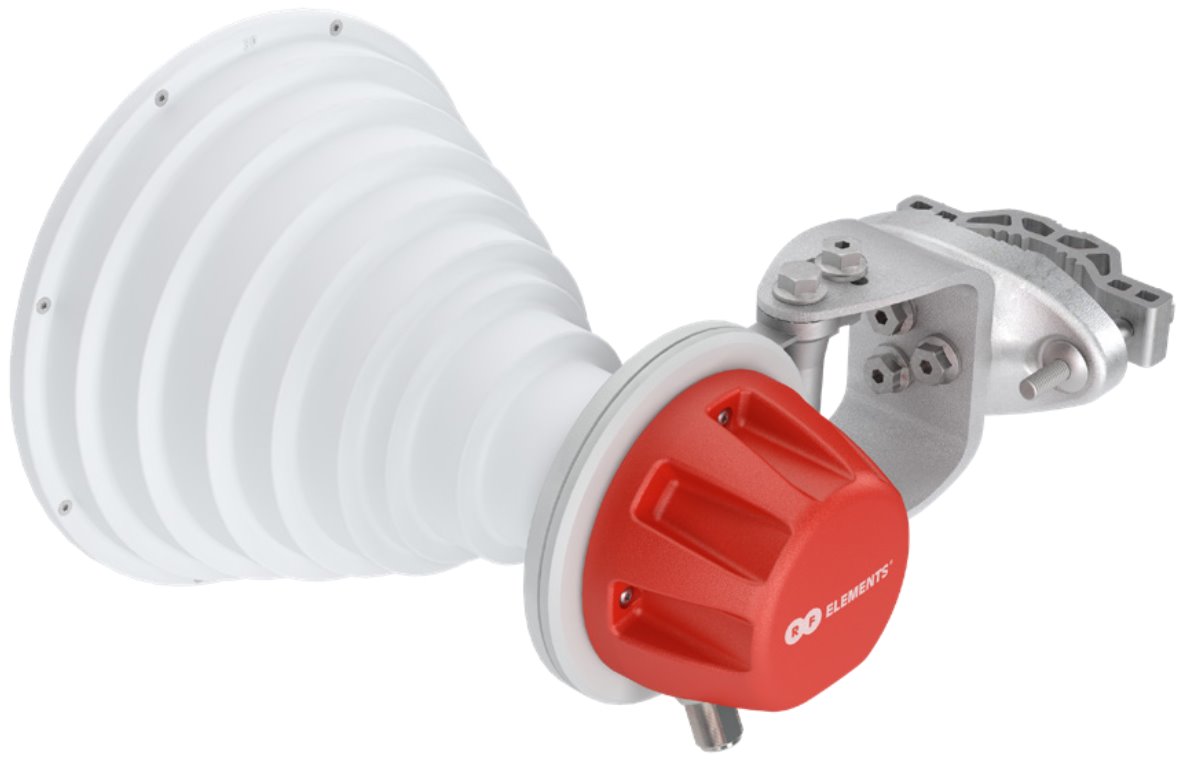

Symmetrical Horn SH-CC-5-30 18 dBi

$ 1,055.61 IVA Incluido

IVA (21%)          ID: 4605

Las antenas de cuerno simétricas de la clase Carrier son antenas de cuerno escalar con un patrón de radiación de haz simétrico sin lóbulos laterales.

Categoria

CONNECTORIZED SYMMETRICAL HORN ANTENNA
WITH CARRIER CLASS PERFORMANCE
The SH-CC Series offer unique RF performance in a very compact package.
Scalar horn antennas have symmetrical beams with identical patterns in the Vertical
and Horizontal plain. Extremely small side lobes secure greatly decreased interference.
SH-CC Antennas are ideal for covering areas with close in clients where null zone
issues occur. High density AP clusters and radio co-location is now practical due
to very unique RF radiation patterns and compact size.

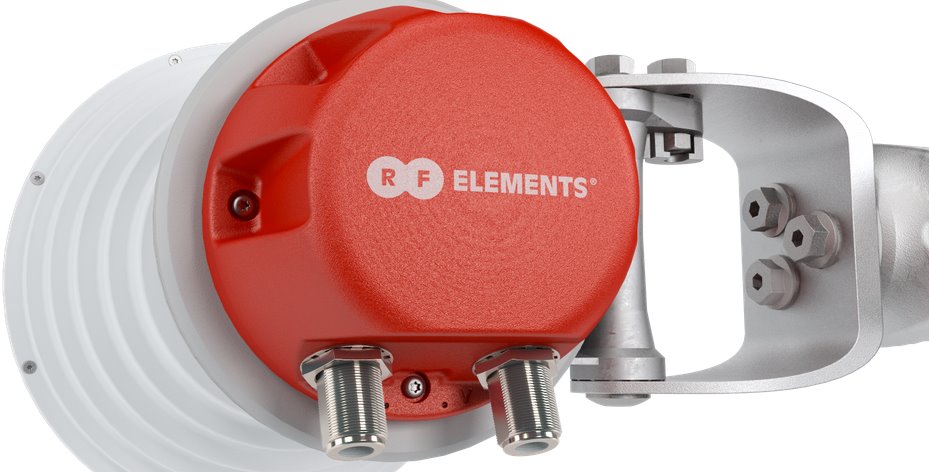

SH-CC 5-30 antenna is equipped with N-female connectors.

TECHNICAL DATA
Radio Connection 2x N Female Bulkhead Connector
Antenna Type Horn
Materials UV Resistant polycarbonate,
Polypropylene, Aluminium, Zinc, Stainless Steel
Enviromental IP55
Pole Mounting Diameter 15-86 mm
Temperature -30°C to +55°C (-22°F to +131°F)
Wind Survival 160 km/hour
Wind Loading 44 N at 160 km/hour
Mechanical Tilt ± 25°
Weight
2.3 Kg / 5 lbs – single unit
3.2 Kg / 7 lbs – single unit incl. package
17.1 Kg /38 lbs – carton (5 units)
Single Unit Retail Box: 31 × 32 × 24 cm
5 Units Carton Box: 118 × 32 × 36 c
