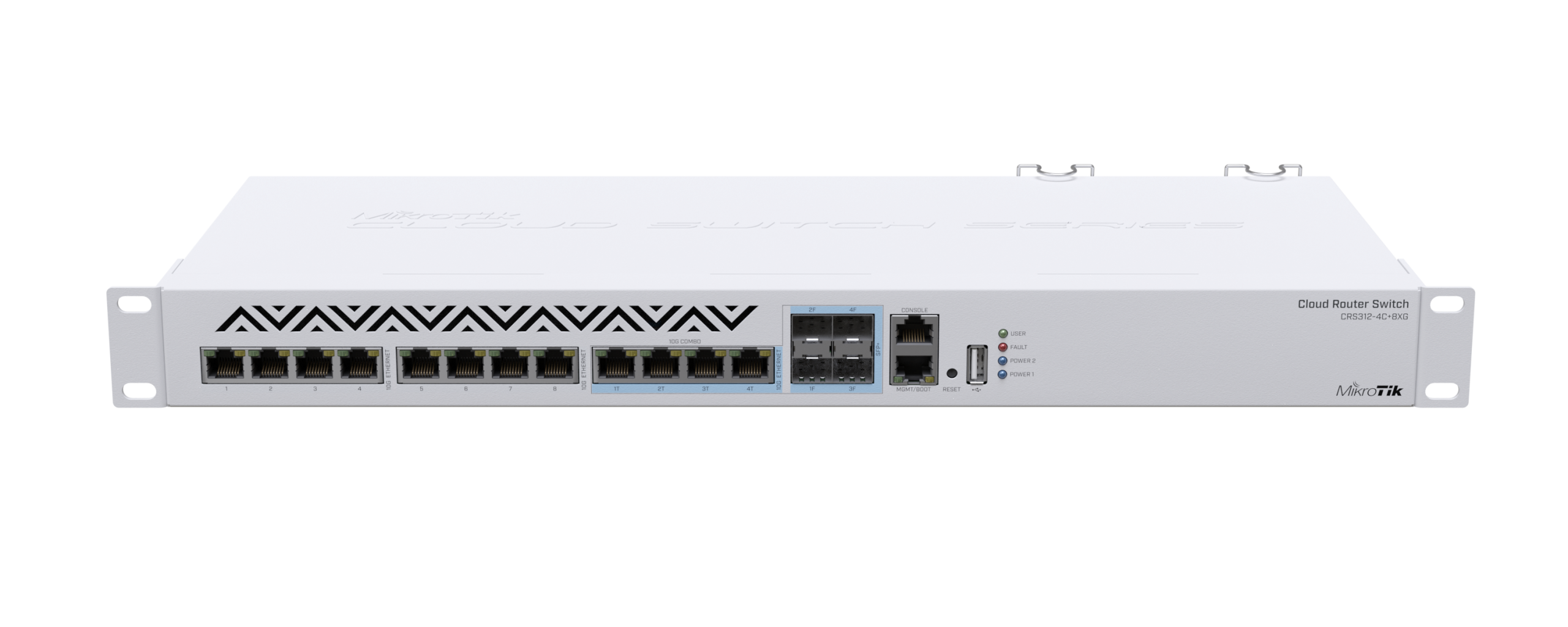

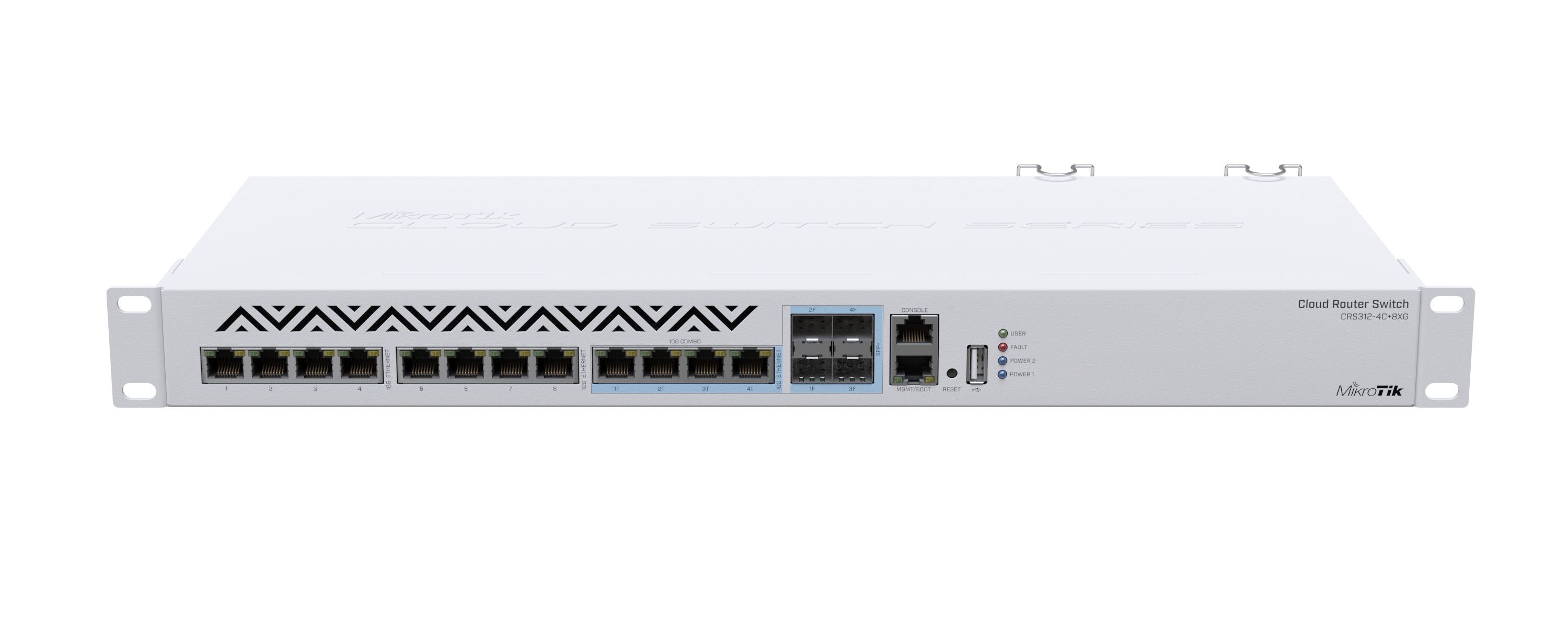

CRS312-4C+8XG-RM
Specifications
Details | |
---|---|
Product code | CRS312-4C+8XG-RM |
Architecture | MIPSBE |
CPU | QCA9531 |
CPU core count | 1 |
CPU nominal frequency | 650 MHz |
Switch chip model | 98DX8212 |
Dimensions | 443 x 183 x 44 mm |
RouterOS license | 5 |
Operating System | RouterOS v7 / SwitchOS |
Size of RAM | 64 MB |
Storage size | 16 MB |
Storage type | FLASH |
MTBF | Approximately 200’000 hours at 25C |
Tested ambient temperature | -30°C to 70°C |
Powering
Details | |
---|---|
Number of AC inputs | 2 |
AC input range | 100-240 |
Max power consumption | 60 W |
Cooling type | 4 fans |
Ethernet
Details | |
---|---|
10/100 Ethernet ports | 1 |
Number of Combo 10G Ethernet/ SFP+ ports | 4 |
Number of 1G/2.5G/5G/10G Ethernet ports | 8 |
Peripherals
Details | |
---|---|
Serial console port | RJ45 |
Number of USB ports | 1 |
USB Power Reset | Yes |
USB slot type | USB type A |
Max USB current (A) | 1 |
Other
Details | |
---|---|
CPU temperature monitor | Yes |
Voltage Monitor | Yes |
Certification & Approvals
Details | |
---|---|
Certification | CE, EAC, ROHS |
